How the new bridge stacks up to others

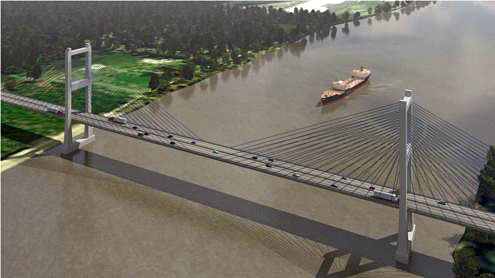

Louisiana bridge — The John James Audubon Bridge, under construction in south central Louisiana, is proposed to be the longest cable-stayed bridge in North America.
Image courtesy of the Louisiana Dept. of Transportation

Each year Road and Bridges magazine singles out 10 bridges with outstanding design or construction features.

We selected four award winners from 2001-2007 to illustrate the effort involved in designing, engineering and constructing a massive structure that must functionally support, and culturally represent, the community in which it is built.

Each of these bridges is an important waterway crossing, and each faced special challenges to conform to public expectations -- whether to replicate history, emphasize safety or create a forward-looking signature landmark.

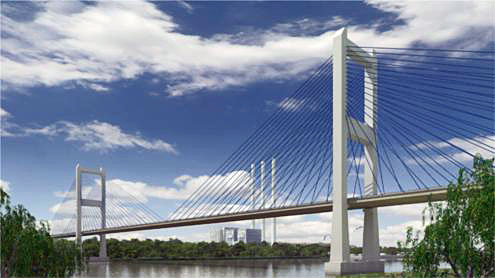

JOHN JAMES AUDUBON BRIDGE

Turn Up Your Support

MPR News helps you turn down the noise and build shared understanding. Turn up your support for this public resource and keep trusted journalism accessible to all.

Projected to be the longest cable stayed bridge in North America, and the only Mississippi River crossing between Natchez, Miss. and Baton Rouge, La.

Crosses the Mississippi River at St. Francisville, La.
Cost: $348 million
Owners: Louisiana Department of Transportation
Length: 1,583-foot main span
Construction type: Cable stayed
Start date: May, 2006
Completion date: June, 2010
Contractor: Flatiron Constructors Inc., Granite Construction

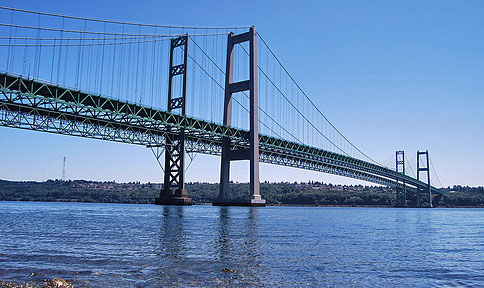

NEW TACOMA NARROWS BRIDGE

The first Tacoma Narrows Bridge, nicknamed "Galloping Gertie," collapsed in 1940, four months after opening.

Although no lives were lost in the wind-induced collapse, the investigation of the structural failure led to advances in the study of aerodynamics and influenced the future of bridge design.

Contractors for the 2007 bridge were forced to work around underwater debris from the 1940 bridge, which cannot be removed because of its historical significance.

Crosses the Tacoma Narrows Strait in Washington State
Cost: $615 million
Owners: Washington State Department of Transportation
Length: 2,800-foot main span
Construction type: Suspension
Start date: October, 2002
Completion date: July, 2007
Contractor: Kiewit, Bechtel

HICKORY STREET BRIDGE

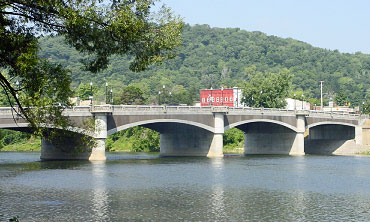

Pennsylvania bridge — The Hickory Street bridge crossing the Allegheny River in downtown Warren, Penn., was built in 2005, to replace an old deteriorated structure. It was designed to be sensitive to the historic district nearby.
Photo courtesy of the Pennsylvania Dept. of Transportation

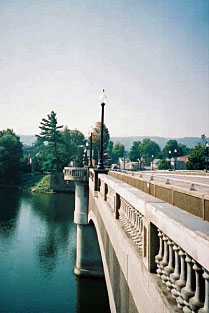

The design of this bridge replicated the look of the 1918 Hickory Street Bridge in historic Warren, Penn. Precast balustrade railings and architectural arch facade panels were reproduced from original drawings of the 1918 bridge.

Crosses the Allegheny River in Warren, Penn.
Cost: $11.4 million
Owner: Pennsylvania Department of Transportation
Length: 516 ft.
Construction type: Prestressed concrete box beam
Start date: May, 2004
Completion date: August, 2005
Contractor: Mascaro Construction

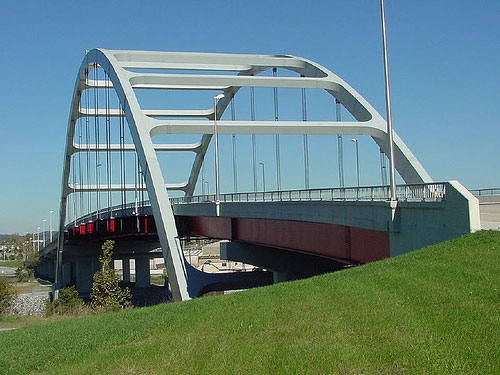

GATEWAY BLVD. BRIDGE
